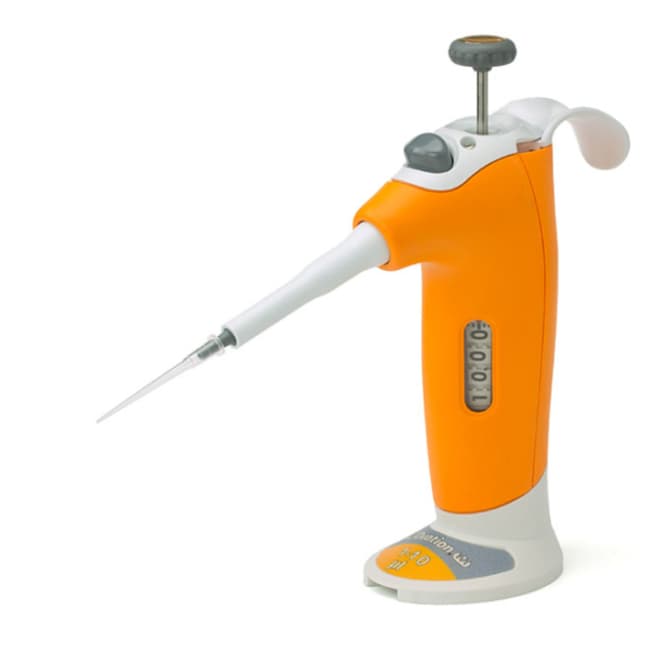

VistaLab™ Ovation Mechanical (M) Pipette

Ovation™ pipettes have a unique and patented ergonomic design. They are the only pipettes that fully address the issues of posture, repetition, and force to significantly reduce strain and pain that occur from pipetting, while always providing superior accuracy and precision.

Catalog Number	Mfr. No.	Volume (Metric)	For Use With (Equipment)
09-035-046	VistaLab™ 10701000LF	1000 μL	10 μL and 20 μL Pipette Tips
09-035-047	VistaLab™ 10700200LF300	200 μL	200 μL Pipette Tips
09-035-048	VistaLab™ 10700200LF200	200 μL	300 μL Pipette Tips
09-035-049	VistaLab™ 10700100LF300	100 μL	300 μL Pipette Tips
09-035-050	VistaLab™ 10700100LF200	100 μL	1000 μL and 1200 μL Pipette Tips
09-035-051	VistaLab™ 10700020LF	20 μL	10 μL and 20 μL Pipette Tips
09-035-052	VistaLab™ 10700010LF	10 μL	200 μL Pipette Tips
09-035-053	VistaLab™ 10700002LF	2 μL	200 μL Pipette Tips

Description

• The angled shape allows users to pipette with low arm and elbow height, decreasing tension and associated pain in the neck, shoulder, back, and elbow.
• When used properly, the Ovation™ pipette will keep the user's hand and wrist in the neutral position recommended by ergonomic experts.
• Contoured body shape and adjustable hook assures a comfortable, easy grip, and custom fit hand hold.
• Spring-loaded tip acquisition means a gentle push is all that is required to attach tips, and an audible click confirms secure attachment.
• Tips flick off easily with a low force push of the eject button.
• Special filters in the nozzle prevent liquid from being inadvertently aspirated into the pipettor, protecting it from contamination.
• Ovation™ pipettes are the only pipettes that stand on their own, which means tips never touch the bench, even if the pipette is put down in the middle of a procedure.
• Mechanical models feature two-stroke operation, available with click stop or quick set digital volume adjustment (0.2 μL to 1000 μL)
• Electronic models feature custom volume presets, multi-dispensing, mixing, and serial diluting (0.5 μL to 1250 μL).
• Electronic Macro 5 mL and 10 mL, and electronic 8 and 12 multichannel models available.
• Single channel models include a built-in micro tube cap opener.
• Color-coded for easy and quick volume identification.

Specifications

• Adjustable Tip Spacing: No
• Disposable: Reusable
• Grip Type: Ergonomic
• Number of Channels: 1
• Sterility: Non-sterile

• Autoclavable: Autoclavable
• For Use With: Pipette Tips
• Material: PVDF
• Programmability: No
• Type: Mechanical Pipette
